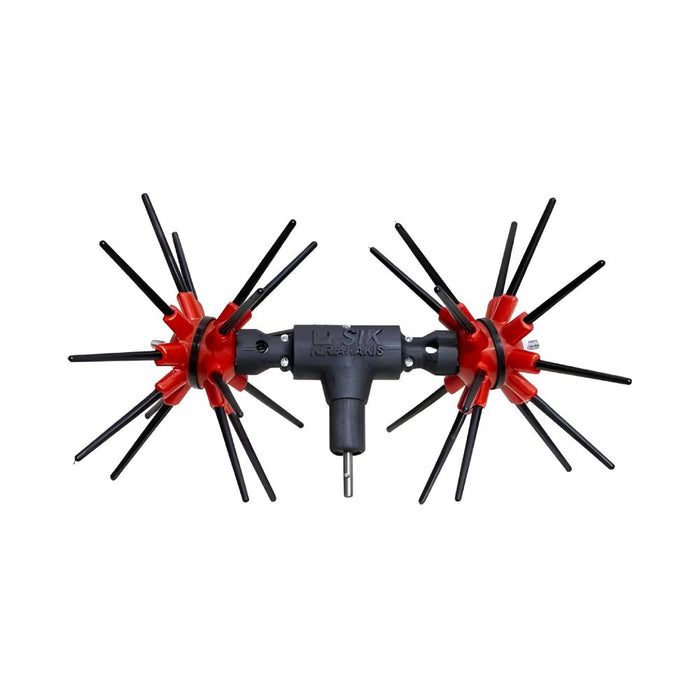

SIK 32 4x4 Complete Olive Harvester Head, Patented Independent 4-Hemisphere System, 32 Carbon Sticks
Request a Quote for Pricing
Prices vary based on market conditions. Fill out the "Request a Quote" form or contact us for the latest pricing.
Description
The 32 4x4 Complete Harvesting Head is a patented olive harvester head with four independently moving hemispheres and 32 interchangeable carbon sticks. This full assembly uses a high-frequency pulsed/oscillating drive to reach 2,700–3,000 RPM (pole-dependent) and is engineered for commercial throughput with a targeted 500–1,500 kg/day yield while delivering zero-tangle entry pathing and zero canopy damage. The unit ships fully populated with 5.0 mm smooth epoxy carbon fiber sticks, features painted metal helical internal gears (Crown-Coil system) and a high-strength industrial composite gearbox housing, and connects to standard aluminium or carbon poles via a non-threaded internal sleeve lock. Requires a 12V DC power source or compatible 13.5V rechargeable battery. Made in Greece.
Highlights
- Patented high-frequency pulsed/oscillating 4-hemisphere drive for multidirectional stripping
- 32 interchangeable 5.0 mm smooth epoxy carbon fiber sticks included
- Operational speed range 2,700–3,000 RPM (pole-dependent) for fast harvesting
- Designed for 500–1,500 kg/day commercial yield with zero-tangle entry and zero canopy damage
- Painted metal helical internal gears (Crown-Coil system) for reliable power transfer
- High-strength industrial composite alloy gearbox housing for durability
- Standard non-threaded internal sleeve pole coupling compatible with aluminium or carbon poles
- Requires 12V DC or compatible 13.5V rechargeable battery (fuse protection recommended)
Specifications
| Full Component Name | SIK 32 4x4 Patented Pulse Harvesting Head |
| Manufacturer Brand | SIK Kiriakakis Agricultural Machinery |
| Made In | Greece |
| Drive Mechanism Type | High-Frequency Pulsed / Oscillating Movement |
| Hemisphere Configuration | 4 Independent Quadrant Hemispheres |
| Stick / Tine Capacity | 32 Interchangeable Slots |
| Standard Tines Included | 5.0 mm Smooth Epoxy Carbon Fiber Sticks |
| Internal Gearing | Painted Metal Helical Gears (Crown-Coil System) |
| Gearbox Housing | High-Strength Industrial Composite Alloys |
| Operational Speed Profile | 2,700–3,000 RPM (pole-dependent) |
| Harvest Target Yield | 500–1,500 kg/day |
| Vegetable Clearance | Zero-tangle entry pathing |
| Pole Coupling Interface | Standard non-threaded internal sleeve lock |
| Weight | 800 kg |
| Power Source | 12V DC or compatible 13.5V rechargeable battery |
Special Notes
- Requires a 12V DC power source (car battery) or compatible 13.5V rechargeable battery
- Ensure fuse protection and secure alligator clip connections before operation
- Replacement carbon sticks and service parts should be verified and ordered through the manufacturer or an authorized dealer
