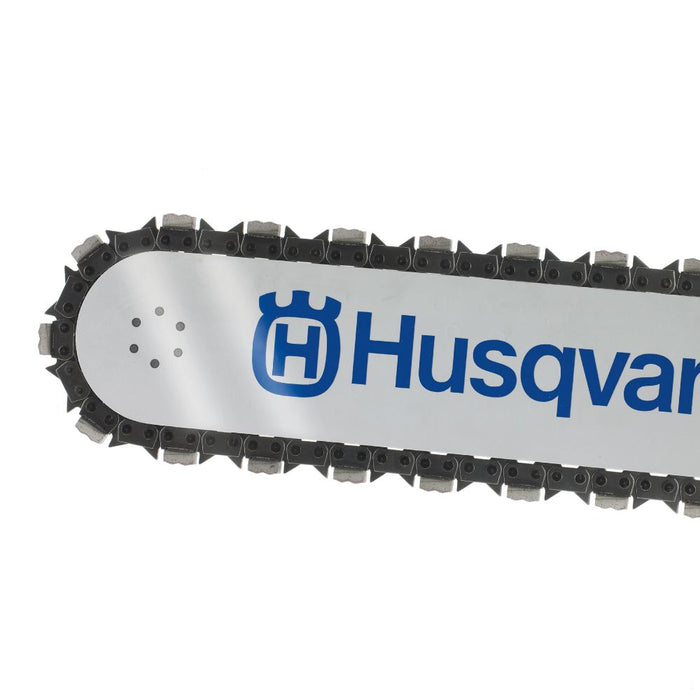

Guide Bar, High-Precision Laminated Concrete Chainsaw Bar, Suitable for Elite & Vari Chains
SKU Guide Bar 400 mm
Request a Quote for Pricing
Prices vary based on market conditions. Fill out the "Request a Quote" form or contact us for the latest pricing.
Description
This laminated Elite guide bar is engineered for concrete-cutting chainsaws and fits K 970 and K 7000 platforms. High-grade laminated alloy steel construction and a heavy-duty roller bearing sprocket nose provide stable straight-line tracking for diamond chains. Integrated internal water channels manage slurry and a heavy-duty anti-scratch epoxy enamel protects the surface. Available in 400 mm and 500 mm lengths.
Highlights
- Engineered for concrete cutting and compatible with K 970 and K 7000 platforms.
- High-grade laminated alloy steel construction for durability and straightness
- Heavy-duty roller bearing sprocket nose for smooth, low-friction tracking
- Integrated internal water channels for effective slurry management
- Heavy-duty anti-scratch epoxy enamel surface protection
- Available lengths: 400 mm (450 mm max cutting depth) and 500 mm (555 mm max cutting depth)
- Required drive link counts: 59 (400 mm), 69 (500 mm)
- Segment width 5.7 mm (0.22")
- Required chain pitch 0.444 inches
- 2-bolt rigid flange mount
- Gross weight approximately 1.8 kg.
Specifications
| Application | All-round Concrete Cutting |
| Physical Bar Length | 400 mm, 500 mm |
| Maximum cutting depth | 450 mm, 555 mm |
| Suitable chains | Elite and Vari chains |
| Required drive link count | 59, 69 |
| Segment width | 5.7 mm (0.22") |
| Slurry management system | Integrated Internal Water Channels |
| Mount configuration | 2-Bolt Rigid Flange Mount |
| Power range | 4 kW to 5.5 kW |
| Surface protection coating | Heavy-Duty Anti-Scratch Epoxy Enamel |
| Nose assembly type | Heavy-Duty Roller Bearing Sprocket Nose |
| Required chain pitch | 0.444 inches |
| Suitable equipment | K 970 Chain, K 7000 Chain |
| Material | High-Grade Laminated Alloy Steel |
| Type of power cutter tool | Standard Chains |
| Gross weight | 1.8 kg |
Special Notes
- Install on compatible machines using the 2-bolt rigid flange and follow the machine manufacturer's torque and installation instructions
- Verify use of 0.444" concrete chain pitch before mounting
- Inspect roller bearing sprocket nose and clear internal water channels before each job
- For warranty or service support contact the machine or attachment manufacturer.
