DMS 240 Electric Core Drill, Industrial Core Drilling, 2.4 kW, 250 mm Max. Drill Bit Diameter, Wet, 27.6 kg
by Husqvarna
SKU DMS 240
Sold out
Original price
$2,000.00
-
Original price
$2,000.00
Original price
$2,000.00
$2,000.00
-
$2,000.00
Current price
$2,000.00
Availability:
Out of stock
Standard shipping
Estimated delivery time: 2-4 business days
Description

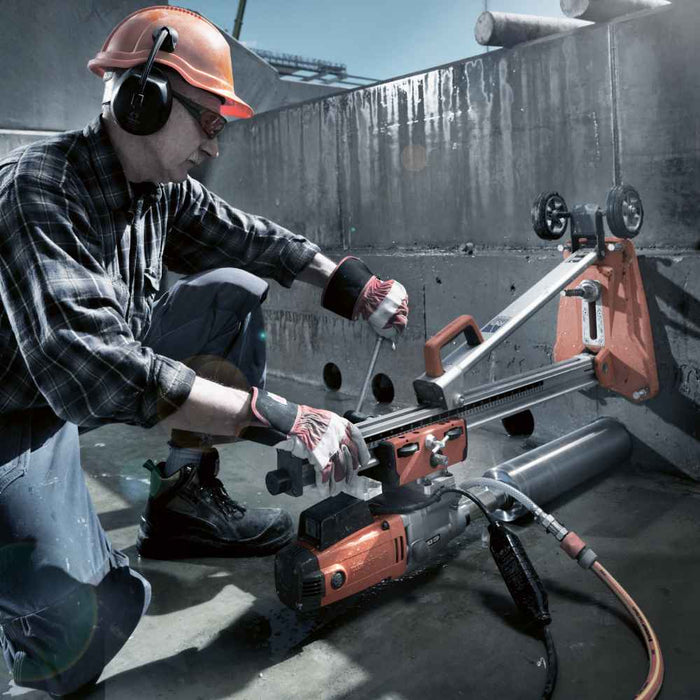

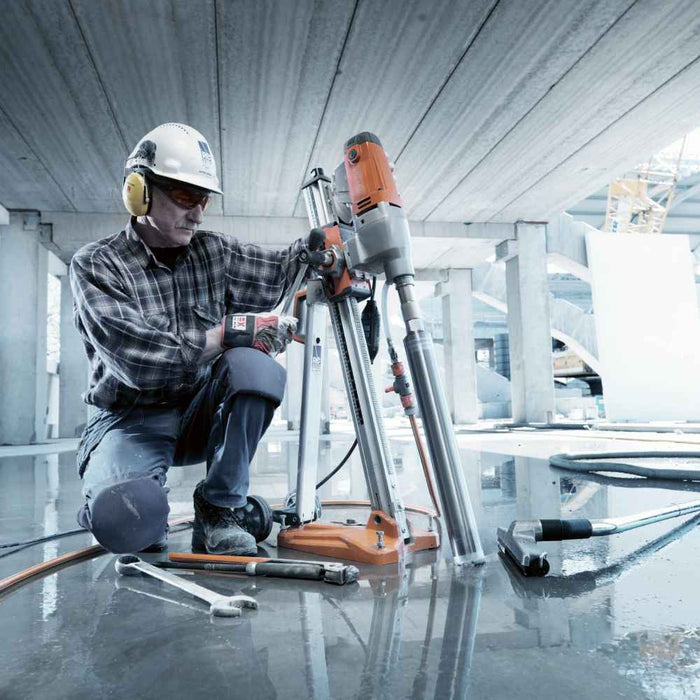

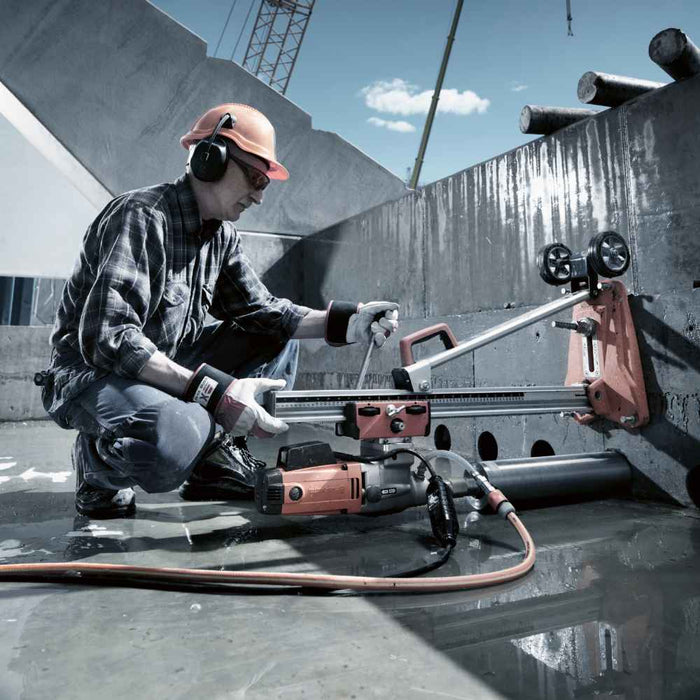

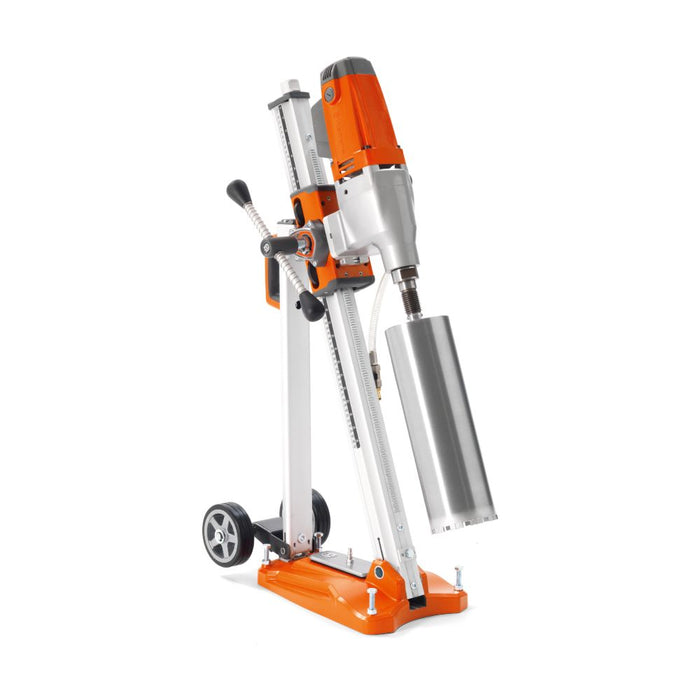

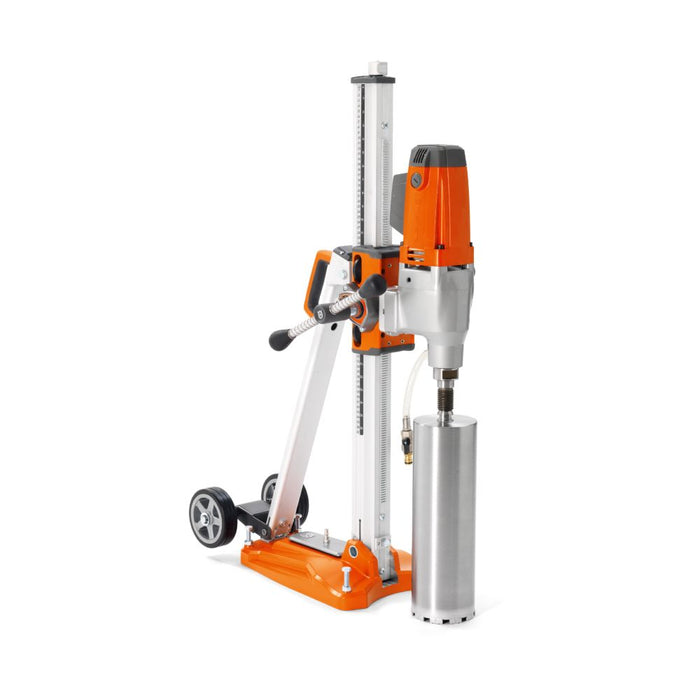

DMS 240 electric core drill pairs a high-efficiency 2.4 kW motor with a robust rig for heavy-duty wet drilling in reinforced concrete, brick and hard limestone. The system offers stepless 0°–60° column angling, a 2-speed mechanical gearbox for controlled cutting, and a 610 mm travel for deep cores, plus a combination vacuum/mechanical anchoring option for stable on‑site operation.
Stand included.
Highlights
- 2.4 kW electric motor for heavy-duty wet drilling
- Two-speed mechanical gearbox for controlled full-load and idle spindle speeds

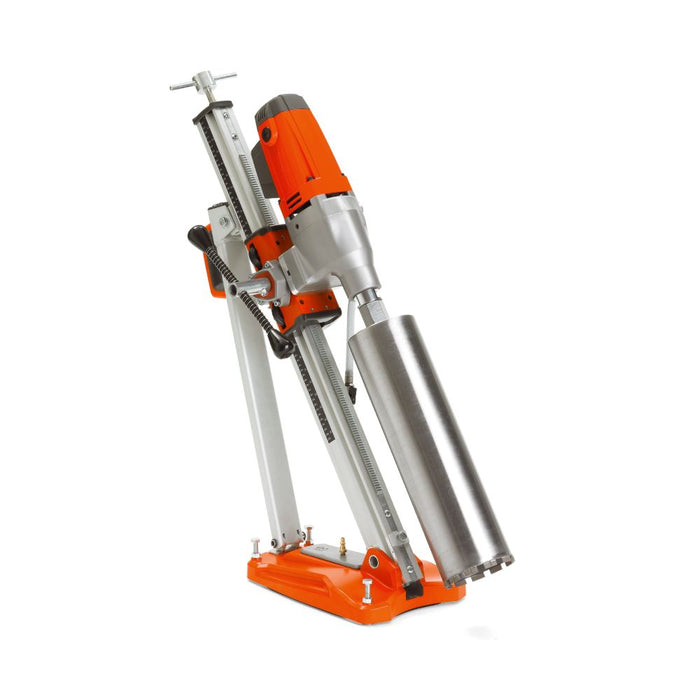

- Stepless 0°–60° column angling for precise angle and stitch drilling
- Supports core diameters from 25 mm recommended up to 250 mm maximum
- 610 mm maximum drill travel for deep penetrations
- Combination vacuum and mechanical base anchoring for secure setup
- Extruded structural aluminum alloy drill stand for strength and light weight
- Cast magnesium-aluminum motor and gearbox housing for durability
- G 1/4" brass quick-connect coolant interface with 8 bar max pressure
Specifications
| Brand | Husqvarna |
| Engine Type | Electric |
| Rated Input Power | 2.4 kW (3.3 hp) |
| Voltage | 220 V - 240 V |
| Rated Amperage Current | 20 A |
| Max Drill Bit Diameter | 250 mm |
| Min Recommended Drill Bit Diameter | 25 mm |
| Max Drill Travel / Stroke | 610 mm |
| Transmission Layout | 2-Speed Mechanical Gearbox |
| Stepless Column Angling | Yes |
| Tilting Range | 0° to 60° |
| Full Load Spindle Speeds | 280 / 640 RPM |
| Unloaded/Idle Spindle Speeds | 390 / 890 RPM |
| Integrated Anchor Method | Combination Vacuum / Mechanical Base |
| Drill Stand Material | Extruded Structural Aluminum Alloy |
| Motor & Gearbox Housing | Cast Magnesium-Aluminum Alloy |
| Spindle & Gear Composition | Hardened Chrome-Moly Alloy Steel |
| Spindle Output Fitting | 1¼" - 7 UNC Threaded Male |
| Coolant Supply Interface | G 1/4" Threaded Brass Quick Connect |
| Max. Coolant Pressure | 8 Bar |
| Weight | 27.6 kg |
| Application | Reinforced concrete, ceiling roofs, hard limestone, asphalt stitch-drilling |
Special Notes
- Wet drilling requires an appropriate coolant supply and compatible core bits sized to the machine's recommended range
- Use the integrated combination vacuum/mechanical anchoring according to substrate and site safety procedures
- Ensure electrical supply matches 220–240 V, 20 A specification and follow local electrical safety regulations
- Regular inspection and maintenance of spindle, gearbox and coolant fittings prolong service life
