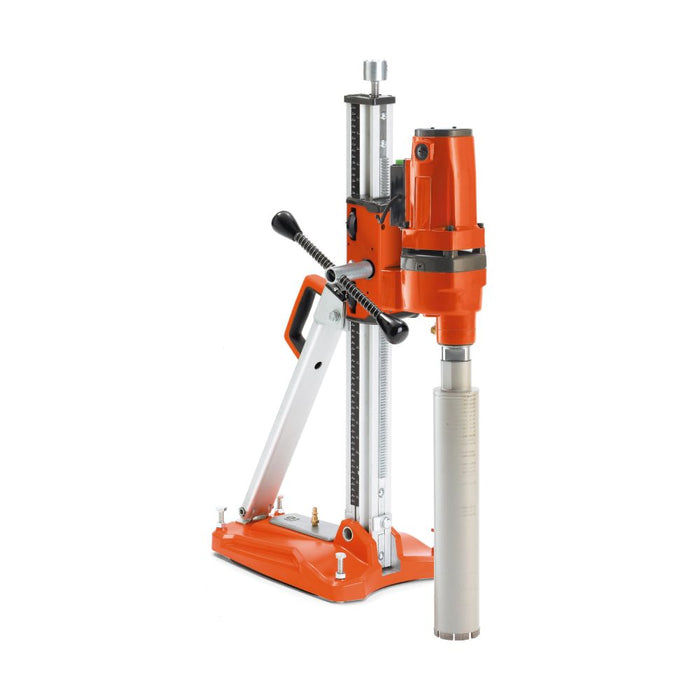

DMS 180 Electric Core Drill, Light Core Drilling, 1.8 kW, 150 mm Max. Drill Bit Diameter, Wet, 23.3 kg
by Husqvarna
SKU DMS 180
Original price
$1,500.00
-
Original price
$1,500.00
Original price
$1,500.00
$1,500.00
-
$1,500.00
Current price
$1,500.00
Availability:
Low stock
Standard shipping
Estimated delivery time: 2-4 business days
Description
DMS 180 is a portable, lightweight electric core drill motor and rig system optimized for small-to-medium wet coring tasks; it delivers stable, accurate performance for stitch drilling, anchor holes and utility pipe openings up to 6 inches in diameter, with a stepless 0–60° tilting column and robust construction for rental shops and professional contractors.
Highlights
- Compact, portable 23.3 kg design for easy transport and site setup
- 1.8 kW electric motor delivering consistent wet coring performance
- Drilling range 25–150 mm for small-to-medium core work
- Stepless column angling with 0°–60° tilt for angled and stitch drilling
- Integrated combination vacuum and mechanical base for secure anchoring
- Single-speed gearbox with 540 rpm full-load spindle for controlled coring
- Durable construction: extruded aluminum drill stand and cast magnesium motor housing
- G 1/4" quick-connect coolant interface and 1¼"-7 UNC spindle fitting for standard core accessories
- Engineered for rental shops and professional electrical/plumbing contractors
Specifications
| Brand | Husqvarna |
| Engine Type | Electric |
| Rated Input Power | 1.8 kW (2.5 hp) |
| Voltage | 230 V |
| Rated Amperage Current | 15 A |
| Max Drill Bit Diameter | 150 mm |
| Min Recommended Drill Bit Diameter | 25 mm |
| Max Drill Travel / Stroke | 485 mm |
| Transmission Layout | Single-Speed Gearbox |
| Stepless Column Angling | 0° to 60° Tilting Range |
| Full Load Spindle Speeds | 540 RPM |
| Unloaded/Idle Spindle Speeds | 800 RPM |
| Integrated Anchor Method | Combination Vacuum / Mechanical Base |
| Drill Stand Material | Extruded Structural Aluminum Alloy |
| Motor & Gearbox Housing | Cast Magnesium Alloy |
| Transmission Gear Material | Case-Hardened Alloy Steel |
| Spindle Output Fitting | 1¼" - 7 UNC Threaded Male |
| Coolant Supply Interface | G 1/4" Threaded Quick Connect |
| Max. Coolant Pressure | 8 Bar |
| Weight | 23.3 kg |
| Application | Brick masonry, Medium-cured structural concrete, high-density aggregate river rock |
Special Notes
- Intended for professional and rental use
- follow local electrical codes and site safety procedures
- use appropriate personal protective equipment (PPE) when operating.
