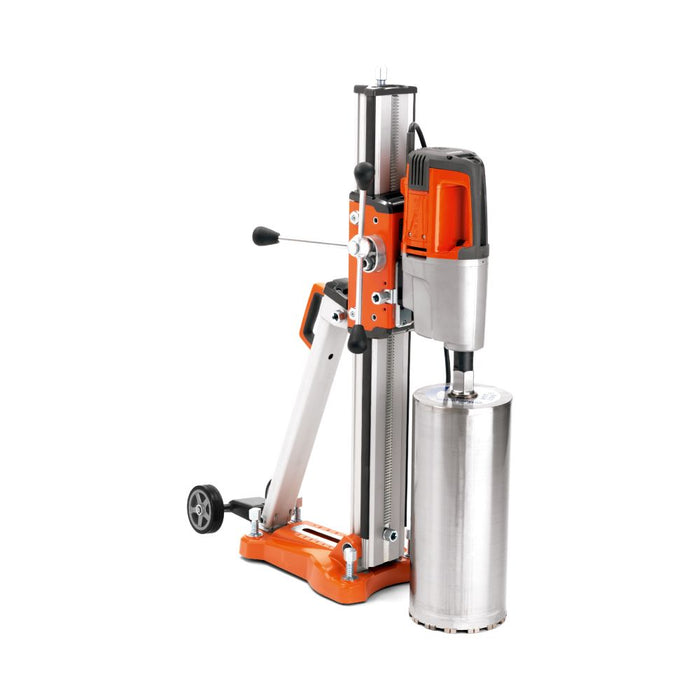

DM 280 Electric Core Drill, Medium Core Drilling, 2.7 kW, 350 mm Maximum Drill Bit Diameter, 13 kg
by Husqvarna
SKU DM 280
Save $1,100.00
Original price
$3,800.00
Original price
$3,800.00
-
Original price
$3,800.00
Original price
$3,800.00
Current price
$2,700.00
$2,700.00
-
$2,700.00
Current price
$2,700.00
Availability:
Low stock
Standard shipping
Estimated delivery time: 2-4 business days
Description
DM 280 Electric Core Drill delivers robust 2.7 kW performance for precise medium core drilling from 50–350 mm. Built for both stand and hand-held use, it features an easy-to-operate motor, a 3-speed mechanical gearbox for controlled spindle speeds, and a lightweight 13 kg magnesium-aluminum housing for improved handling during wet or dry drilling tasks.
Stand not included.
Highlights
- 2.7 kW easy-to-operate electric motor for consistent power
- Medium core drilling capacity from 50 mm to 350 mm for versatile jobsite use
- Usable hand-held or mounted on a compatible stand for increased flexibility
- 3-speed mechanical gearbox with multiple full-load and idle spindle speeds for precise control
- Cast magnesium-aluminum motor and gearbox housing for reduced weight and durability
- Hardened chrome-moly alloy steel spindle and gears for longevity
- 1¼" - 7 UNC threaded spindle output for standard core bit mounting
- Built-in G 1/4" 180° swivel coolant coupling with up to 8 bar coolant pressure
- Weight 13 kg for manageable portability on site
- Suited for heavily reinforced concrete, limestone, basalt, asphalt and uncured concrete
Specifications
| Brand | Husqvarna |
| Engine Type | Electric |
| Rated Input Power | 2.7 kW (3.6 hp) |
| Voltage | 220 V - 240 V |
| Rated Amperage Current | 13 A to 25 A (Depending on voltage) |
| Max Drill Bit Diameter | 350 mm |
| Min Recommended Drill Bit Diameter | 50 mm |
| Transmission Layout | 3-Speed Mechanical Gearbox |
| Full Load Spindle Speeds | 240, 540, 930 RPM |
| Unloaded Spindle Speeds | 310, 690, 1190 RPM |
| Motor & Gearbox Housing | Cast Magnesium-Aluminum Alloy |
| Spindle & Gear Composition | Hardened Chrome-Moly Alloy Steel |
| Spindle Output Fitting | 1¼" - 7 UNC Threaded Male |
| Coolant Supply Interface | G 1/4" Built-in 180° Swivel Coupling |
| Max. Coolant Pressure | 8 Bar |
| Weight | 13 kg |
| Application | Heavily Reinforced Concrete, Medium-Hard Limestone, Basalt & Sandstone, Abrasive Asphalt & Roadways, Green / Uncured Concrete |
Special Notes
- Stand not included
- Compatible with commercial core drilling stands using 1¼" - 7 UNC spindle fitting
- Use appropriate diamond core bits sized 50–350 mm
- Coolant supply for wet drilling must not exceed 8 bar
- Rated amperage depends on local mains voltage and may range from 13 A to 25 A
