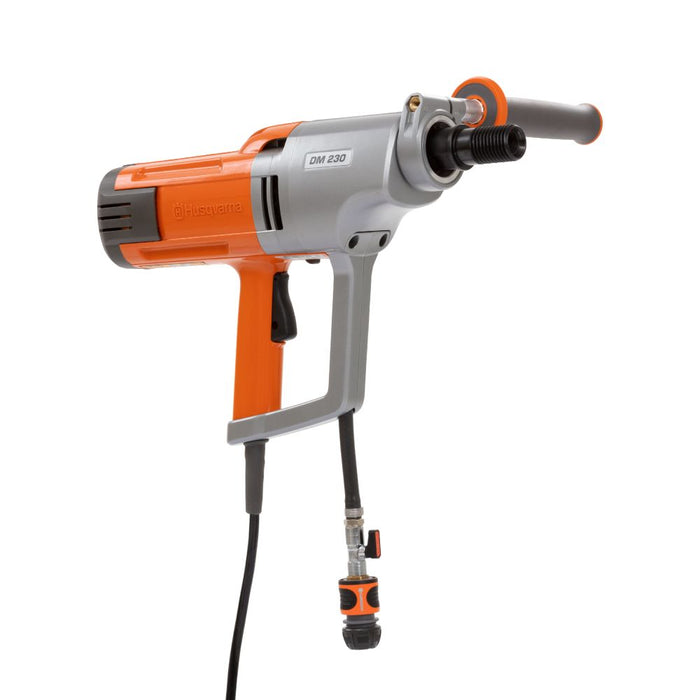

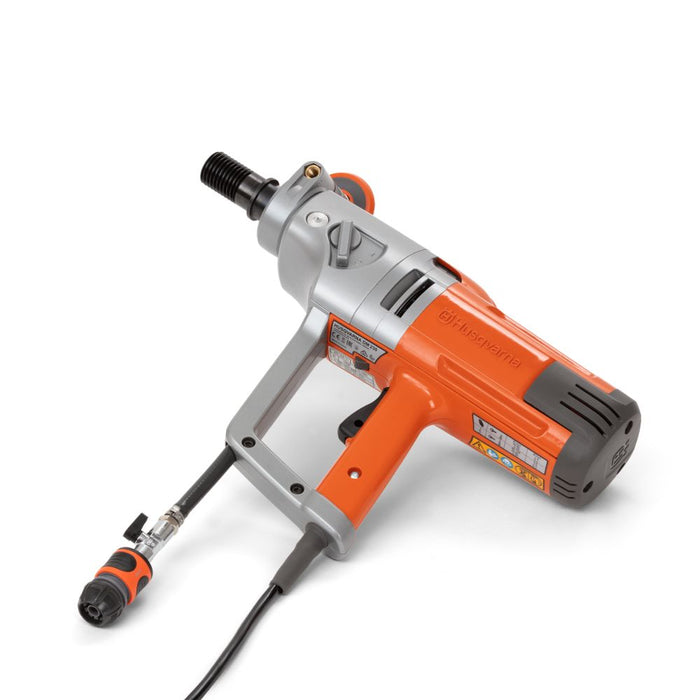

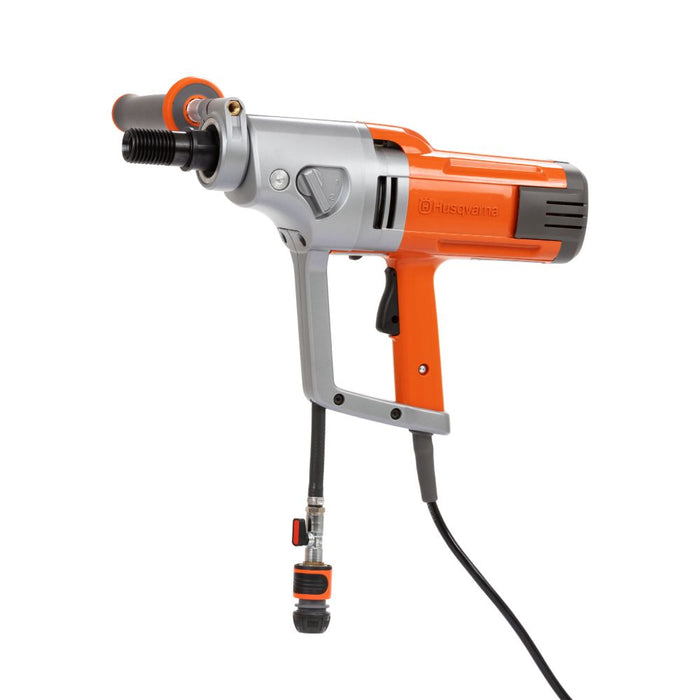

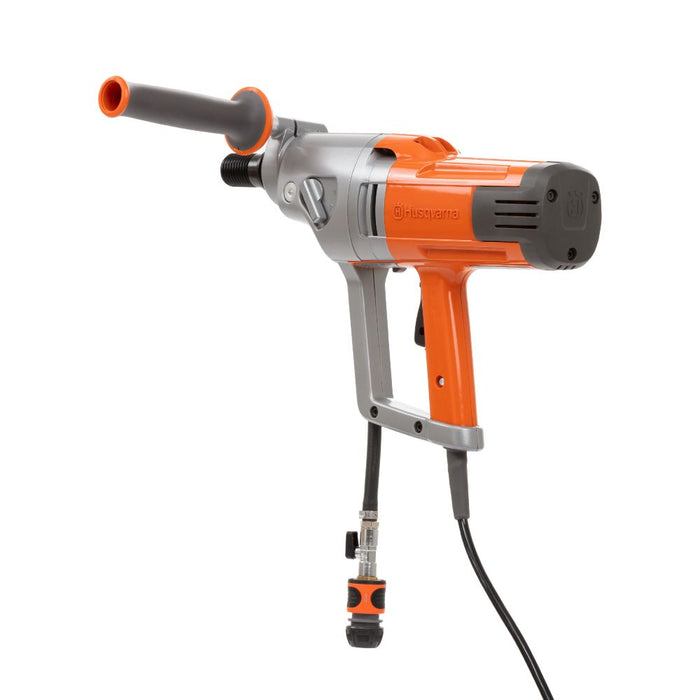

DM 230 Electric Handheld Core Drill, 3-Speed, 1.9 kW, Wet & Dry, 150 mm Max. Drill Diameter, 7 kg
SKU DM 230
Request a Quote for Pricing
Prices vary based on market conditions. Fill out the "Request a Quote" form or contact us for the latest pricing.
Description
Take total control over your utility penetrations with the Husqvarna DM 230 Handheld Core Drill. Engineered for professional HVAC technicians, electricians, and plumbers, this system packs a high-torque 3-speed mechanical transmission into an agile, hand-held D-handle frame. Whether you are wet-coring precise 4-inch pathways through rebar-packed structural walls or switching to dry dust-extraction for indoor masonry blockwork, the DM 230 maximizes speed while lowering operator setup fatigue.
Highlights
Specifications
| Brand | Husqvarna |
| Engine type | Electric |
| Primary structural chassis | Shock-proof High-Density Structural Polymer |
| Gearbox casting material | Lightweight Cast Magnesium Alloy |
| Transmission gear material | Hardened Alloy Steel |
| Rated input power | 1.9 kW (2.5 hp) |
| Operational gearing configuration | 3-Speed Mechanical Gearbox |
| Full load spindle speeds | 580 / 1400 / 2900 RPM |
| Unloaded / idle spindle speeds | 900 / 2180 / 4500 RPM |
| Voltage | 220 V - 240 V |
| Rated current | 8 A |
| Phase layout | 1-Ph |
| Drill bit diameter, max (handheld) | 25 mm to 100 mm |

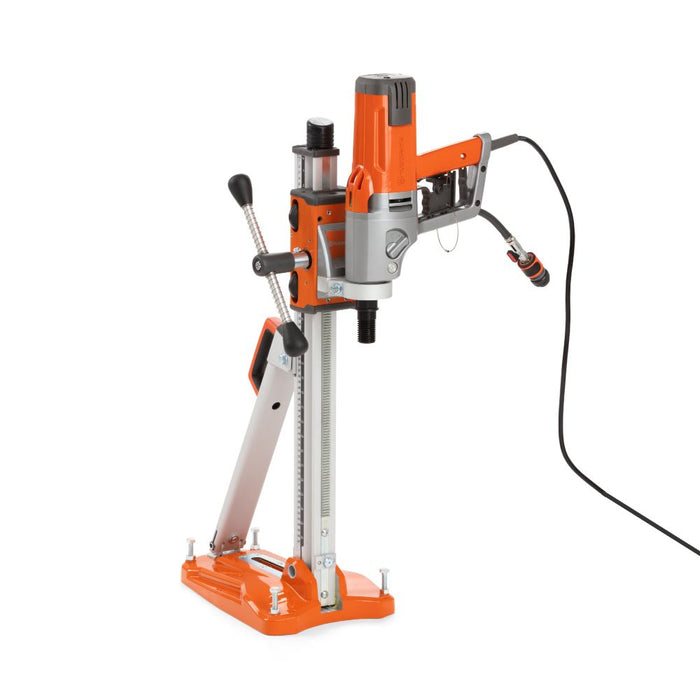

| Drill bit diameter, max (on stand) | 25 mm to 150 mm |
| Recommended drill bit diameter, min | 25 mm |
| Spindle thread connection | 1¼" - 7 UNC Outer / ½" BSP Inner |
| Coolant supply interface | G 1/4" Built-in 180° Swivel Coupling |
| Maximum coolant pressure | 8 bar |
| Mounting collar width (stand capable) | 60 mm |
|
Handle design |
L-shaped handle, 360-degree adjustable |
| Weight | 6.4 kg |
| Application | Ventilation, plumbing, and electrical installations |
Special Notes
- Follow the included user guide for safe and correct operation
- Connectivity with Husqvarna Fleet Services™ requires a separate subscription
- Use compatible core bits and stands designed for the specified spindle thread and mounting collar width
