Diamond Core Drill Spare Segments, High-Yield Barrel Re-Tipping Matrix, Select Sizes
by Husqvarna
SKU Spare Drill Bit Segments
Original price
$9.00
-
Original price
$9.00
Original price
$9.00
$9.00
-
$9.00
Current price
$9.00
Availability:
Low stock
Standard shipping
Estimated delivery time: 2-4 business days
Description

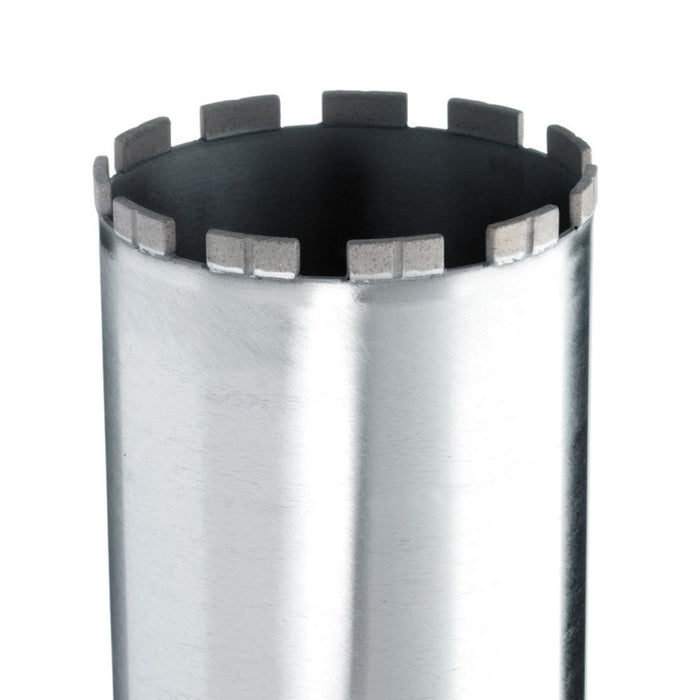

These individual diamond core drill spare segments are replacement tips for professional retipping of worn steel core barrels. Husqvarna segments use a sintered diamond-and-metal matrix with an integrated steel wear base and are attached to tube crowns by silver-soldered brazing or laser welding. Available segment designs include Rooftop, Z-Shape, Turbo and Straight Segmented. Designed for wet coring in heavy reinforced concrete, hard aggregates, flint and granite, they support the maintenance of Elite-Drill, Vari-Drill and Tacti-Drill aligned barrels.
Highlights

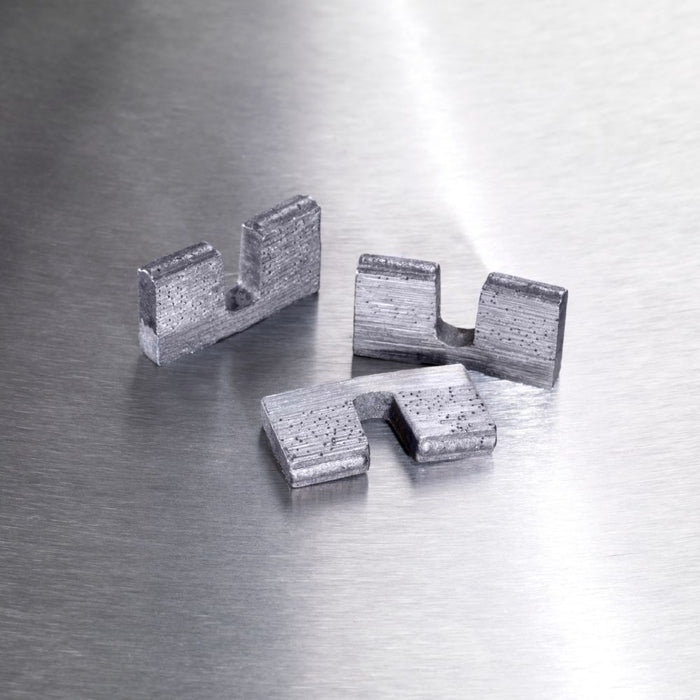

- Individual replacement segments for retipping worn steel core barrels
- Husqvarna diamond-and-metal matrix construction with an integrated steel wear base
- Available with Diagrip™ technology or structured 3D diamond distribution
- Suitable for professional wet coring in heavily reinforced concrete with structural rebar
- Designed for hard aggregates, flint and granite applications
- Attaches to steel tube crowns by brazing or laser welding
- Segment designs include Rooftop, Z-Shape, Turbo and Straight Segmented
- Supports maintenance of Elite-Drill Gold, Vari-Drill Silver and Tacti-Drill Bronze aligned core barrels
- Optimised for high-pressure wet coring slurry management
Specifications
| Brand | Husqvarna |
| Product type | Core drill spare segment |
| Retail quantity | Individual segment |
| Target series alignment | Elite-Drill (Gold), Vari-Drill (Silver), Tacti-Drill (Bronze) |
| Core manufacturing method | Sintered structural diamond matrix with integrated steel wear base |
| Attachment connection | Brazed (silver-soldered) or laser-welded onto steel tube crowns |
| Segment shape design | Rooftop, Z-Shape, Turbo, Straight Segmented |
| Segment length (L) | 24.0 mm |
| Segment height (H) | 8.5 mm to 11.0 mm |
| Segment width (W) | 3.5 mm to 5 mm |
| Diamond layer depth | 7.62 mm up to 9.0 mm |
| Wear base depth | 1.50 mm to 2.00 mm |
| Primary core applications | Heavy reinforced concrete, hard aggregates, flint, granite |
| Coolant configuration | Optimised for high-pressure wet coring slurry management |
Special Notes
- The product is supplied as individual spare segments
- a complete core barrel is not specified as included
- No warranty or accessory inclusions are specified
- Verify warranty and included contents with Technomec before purchase
- Confirm motor power and spindle thread compatibility with the drill before use
- Professional retipping requires attachment to a suitable steel tube crown by brazing or laser welding
