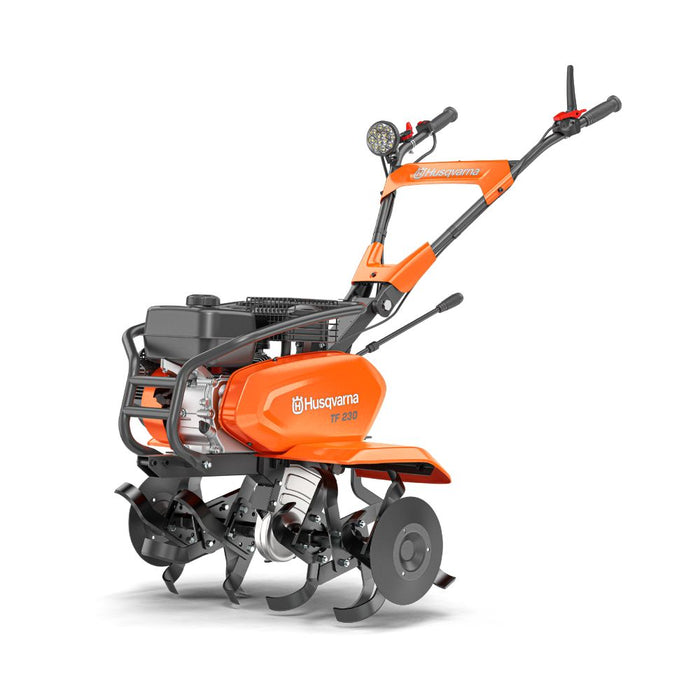

TF 230 Petrol Tiller, Garden Cultivator, 4.6 hp, Chain Transmission, 75 cm Working Width, 70 kg
SKU tf-230
Request a Quote for Pricing
Prices vary based on market conditions. Fill out the "Request a Quote" form or contact us for the latest pricing.
Description
TF 230 Petrol Tiller is a compact front-tine cultivator for small to medium plots, powered by a 196 cc petrol engine (4.6 hp). It transmits power via a chain/manual transmission to 6 tines across a 75 cm working width and 30 cm max depth. The unit weighs 70 kg, features an oil-bath air filter, 3.6 L fuel tank, water-resistant transmission, an adjustable LED headlight, and includes blades and wheels.
Highlights
- Compact front-tine design for maneuvering small to medium plots
- 196 cc, 4.6 hp petrol engine for reliable soil penetration
- 75 cm working width and 30 cm working depth for efficient cultivation
- Chain/manual transmission with 2 forward and 1 reverse gear for precise control
- Six durable tines for effective soil turnover
- Oil-bath air filter to protect the engine
- Water-resistant transmission for enhanced durability
- Adjustable LED headlight for low-light operation
- Includes blades and wheels for immediate use
- 70 kg mass delivers stability during operation
Specifications
| Engine type | Petrol |
| Engine displacement | 196 cc |
| Power output | 4.6 hp |
| Net power at preset rpm | 3,100 rpm |
| Transmission type | Chain/Manual |
| Transmission steps forward | 2 |
| Transmission steps reverse | 1 |
| Working width | 75 cm |
| Working depth | 30 cm |
| Tine diameter | 320 mm |
| Number of tines | 6 |
| Rotational speed min | 53 rpm |
| Rotational speed max | 97 rpm |
| Fuel tank volume | 3.6 L |
| Gear box oil capacity | 0.95 l |
| Air filter type | Oil bath |
| Fuel consumption | 395 g/kWh |
| Weight | 70 kg |
| Wheel size | 15 cm |
| LED headlight | Adjustable |
| Water-resistant transmission | Yes |
Special Notes
- Gear box oil capacity not specified by the manufacturer — confirm capacity before servicing
- Verify local authorized service, spare-parts availability and warranty coverage with Technomec
