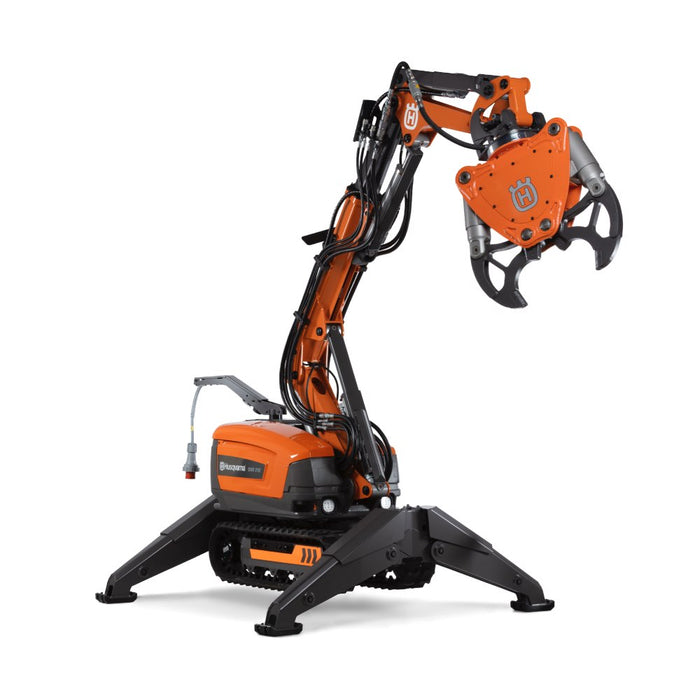

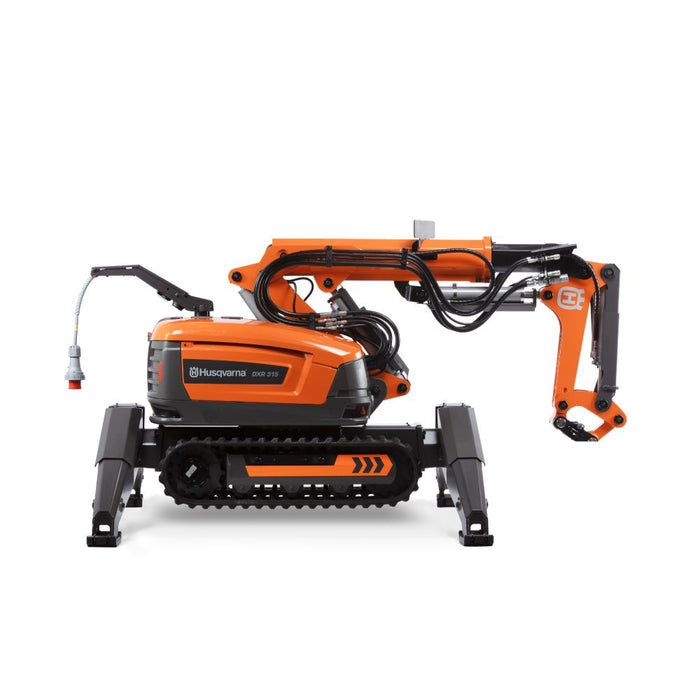

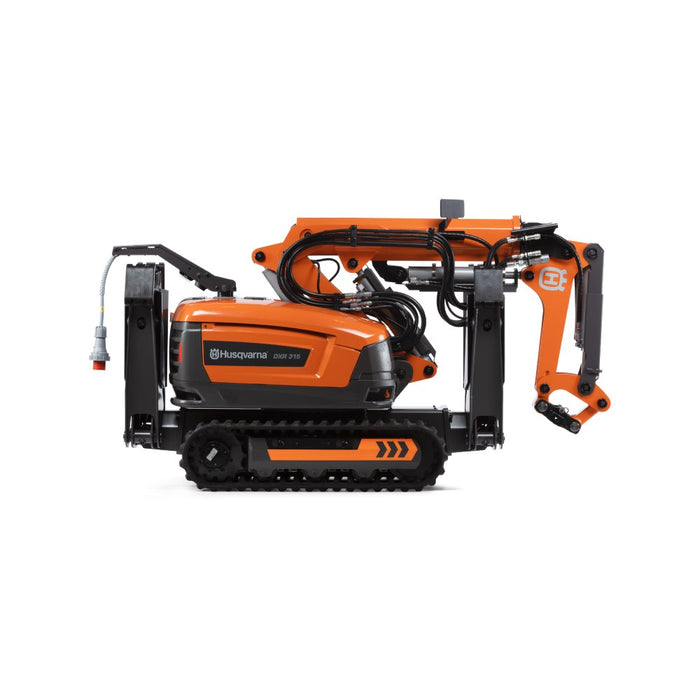

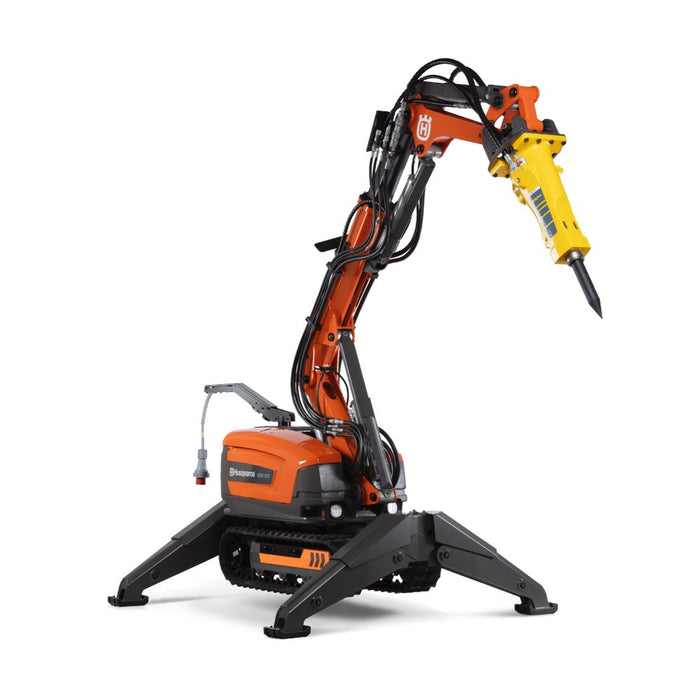

DXR 315 Demolition Robot, Telescopic Arm, Remote-Controlled, 27 kW, 5.5 m Upward Reach, 2020 kg
SKU DXR315
Request a Quote for Pricing
Prices vary based on market conditions. Fill out the "Request a Quote" form or contact us for the latest pricing.
Description
DXR 315 remote-controlled demolition robot with an extendable telescopic arm, 27 kW output and a compact 2020 kg chassis for high mobility. Individually controlled outriggers and a large footprint provide superior stability for heavy workloads. Remote operation (radio or cable, up to 300 m, 2.4 GHz) supports safe maneuvering; compatible with hammers, compact crushers and steel shearer.
Highlights
- Telescopic arm for extended reach and flexible setups
- 27 kW power in a compact 2020 kg chassis for strong performance
- Individually controlled outriggers and large footprint for superior stability and high workload
- Remote operation (radio or cable) for safer, flexible control
- Wireless range up to 300 m with 2.4 GHz radio
- Compatible with hammers, compact crushers and steel shearer for versatile demolition tasks
- Hydraulic system delivering 85 l/min and up to 250 bar pressure for robust tool performance
- Li‑Ion 5.1 Ah battery support for control systems
- Optional factory or accessory packages available for extended hydraulics, cylinder protection and enhanced cooling
Specifications
| Rated input power | 27 kW (36.3 hp) |
| Telescopic arm | Yes |
| Battery type | Li-Ion |
| Battery capacity | 5.1 Ah |
| Oil capacity | 42 l |
| Hydraulic oil flow | 85 l/min |
| Hydraulic pressure, max | 250 bar |
| Range of wireless transmission | Up to 300 m |
|
Signal transmission |
Radio or Cable |
| Motor frequency | 50-60 Hz |
| Radio frequency | 2.4 GHz |
| Upward reach | 5.5 m |
| Forward reach | 5.2 m |
| Product width | 0.8 m |
| Outriggers | Individually controlled |
| Tool compatibility | Hammers, compact crushers, steel shearer, excavating bucket |
| Optional packages | Extended hydraulic function and cylinder protection, Enhanced cooling and heat protection |
|
Weight |
2020 kg |
Special Notes
- Operators should be trained and certified for remote demolition work
- Perform site-specific risk assessments and follow local safety regulations and industry-standard PPE
- Handle and store Li‑Ion batteries according to established safety practices
- Confirm radio frequency use and remote-control compliance with local rules and site requirements
- Verify tool compatibility and hydraulic connections before operation
